Supports 40G 100G LR4 ER4 ZR4 Dual Fiber To Single Fiber CVR LC Connector LGX
With the increase of 100G data transmission with large bandwidth, optical fiber resources between data centers are becoming less and less. How to reuse existing optical fibers can save considerable costs for enterprises. Hilink provides 100G dual-port to single-port converter for bidirectional transmission of 100GLR4/ER4 optical modules over one core fiber, enabling multiple 100G services using the existing dual-core fiber.
Features
u Supports 40G/100G LR4, ER4, ZR4, dual fiber to single fiber
u Operation wave 1310nm
u LC Connector
u Passive device, Low Insertion Loss
Applications
Performance Specification
| Wavelength | 1310nm | Rate | 40G/100G |
| Insertion Loss | ≤ 1dB | Technology | TFF (Thin Film Filter) |
| Insertion Loss | ≤ 2.7dB | Isolation | ≥35dB |
| Polarization Dependent Loss | ≤ 0.1ps | Return Loss | ≥ 45dB |
| TDL (dB) | ≤0.15dB | PMD (ps) | ≤0.055nm |
| Return Loss | ≥ 45dB | Directivity | ≥ 45dB |
| Power handling | ≤500mW | Fiber Type | SMF-28e |
| Connector | LC, SC, FC (UPC/APC) | Temperature | Operating -40 to 85°C Storage -40 to 85°C |
| Net Weight | LGX BOX :0.5KG 4Slot 1u Rack: 2.5KG | Dimensions (HxWxD) | LGX BOX 214.5*150*20mm 4Slot 1u Rack 44*440*160mm |
Product Description

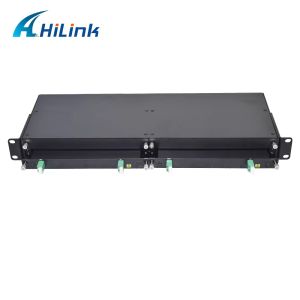

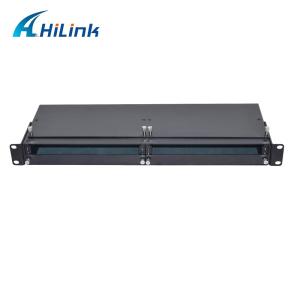

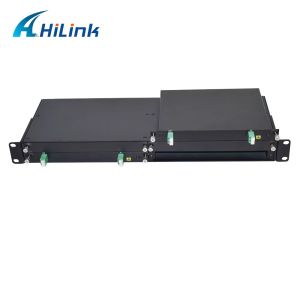

Real Picture
Shipment:
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 1-5 days.
Our Service
OEM/ODM order is available
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
